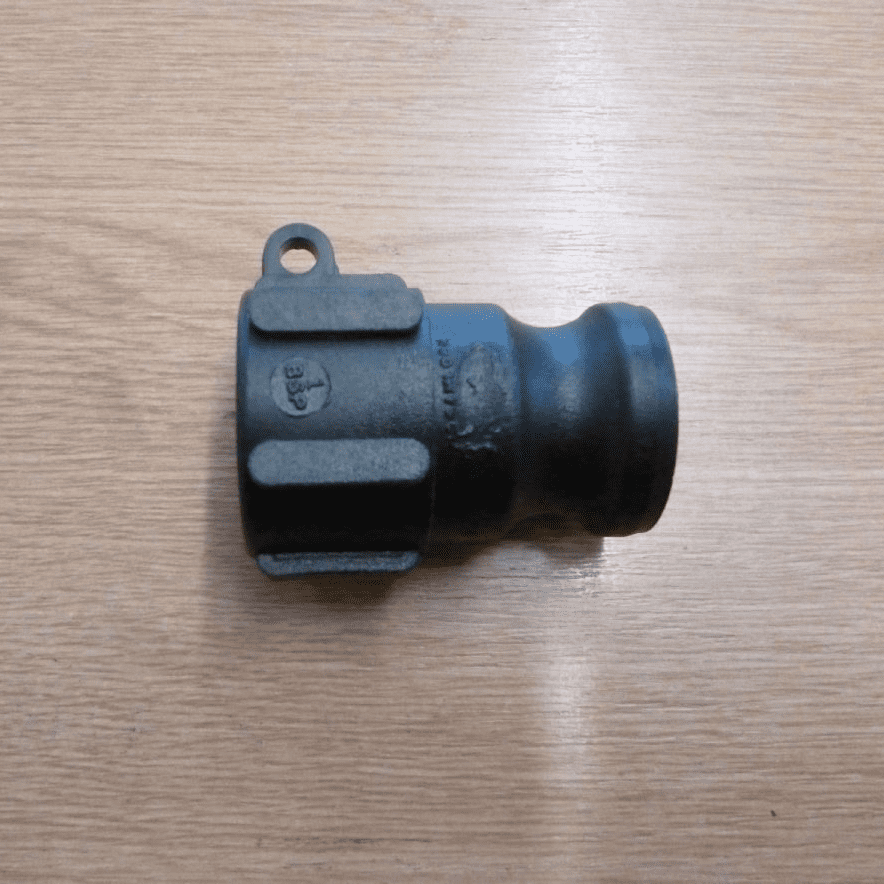

Male Camlock Fittings

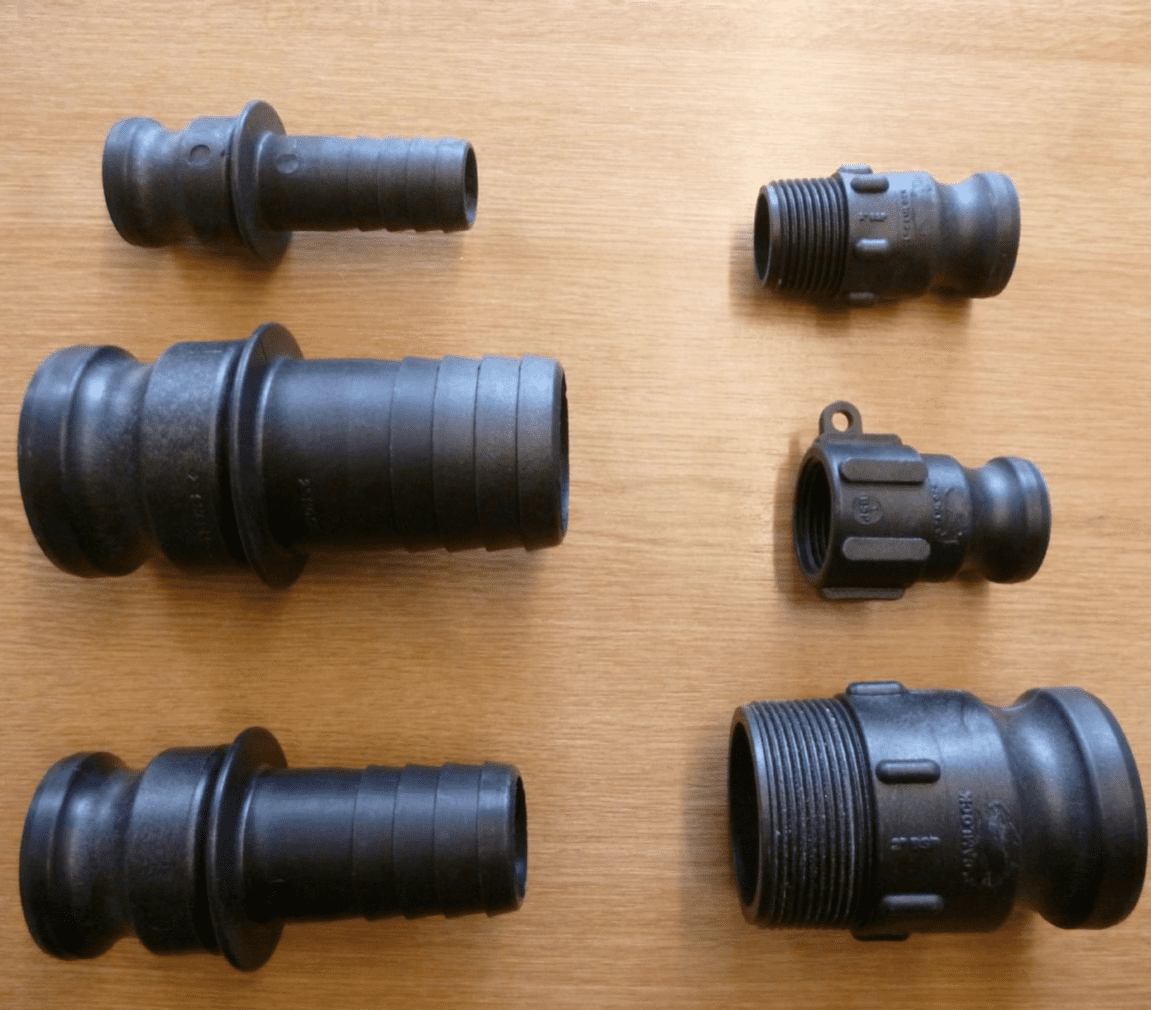

The male camlock fittings come in a range of different sizes and varieties.
Please take a look at the below diagram and list to make sure you are ordering the correct parts.
All camlock fittings are made out of Polypropylene with the female camlock arms being made out of Stainless Steel.
Camlocks are designed to allow the easy and quick removal of tank fittings, such as hoses.
As you can see the listing comes in different sizes. You can have an IBC adaptor to a 1 inch, 1½ or 2 inch Male Camlock. We occasionally have 3 inch camlock connections or larger available, give us a call to discuss.
Camlock Sizes
Please take a look at the below diagram and list to make sure you are ordering the correct parts.
All camlock fittings are made out of Polypropylene with the female camlock arms being made out of Stainless Steel.
Camlocks are designed to allow the easy and quick removal of tank fittings, such as hoses.
As you can see the listing comes in different sizes. You can have an IBC adaptor to a 1 inch, 1½ or 2 inch Male Camlock. We occasionally have 3 inch camlock connections or larger available, give us a call to discuss.

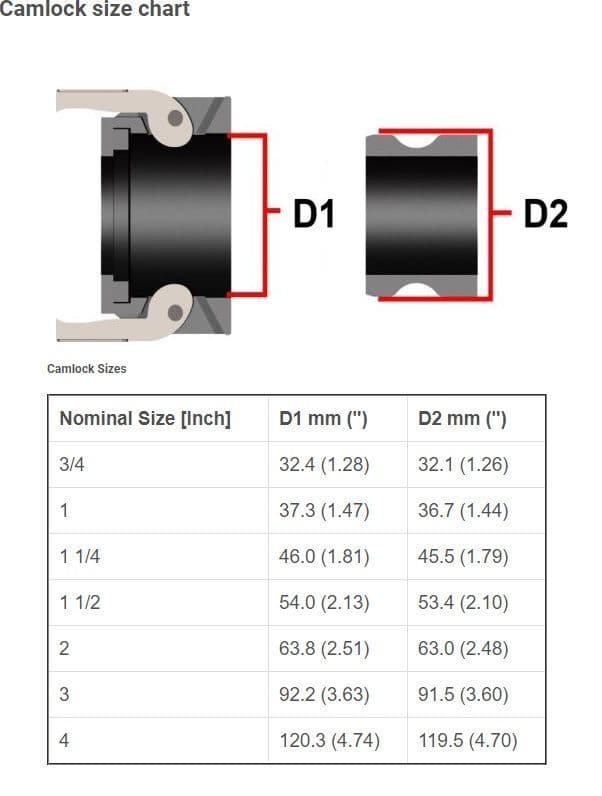

Camlock Sizes
| Nominal Size [Inch] | D1 mm (") | D2 mm (") |
| 3/4 | 32.4 (1.28) | 32.1 (1.26) |
| 1 | 37.3 (1.47) | 36.7 (1.44) |
| 1 1/4 | 46.0 (1.81) | 45.5 (1.79) |
| 1 1/2 | 54.0 (2.13) | 53.4 (2.10) |
| 2 | 63.8 (2.51) | 63.0 (2.48) |
| 3 | 92.2 (3.63) | 91.5 (3.60) |
| 4 | 120.3 (4.74) | 119.5 (4.70) |
