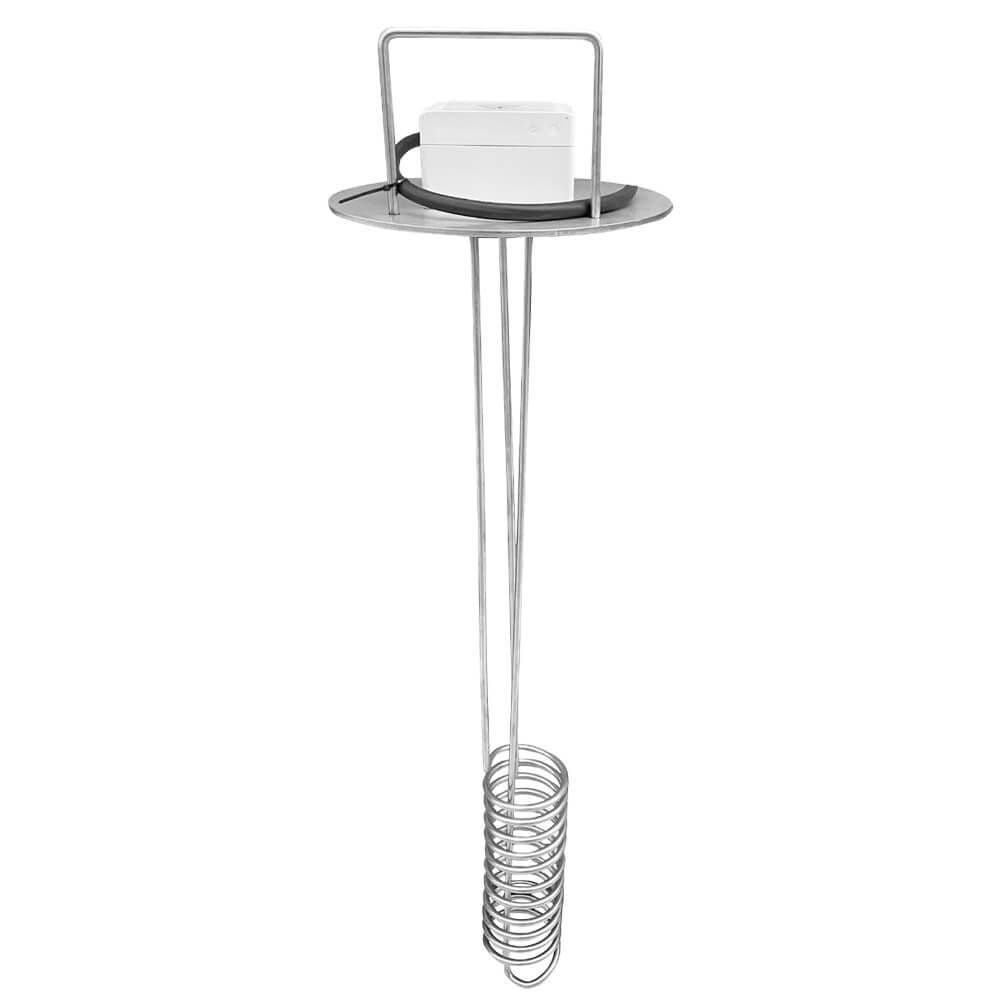

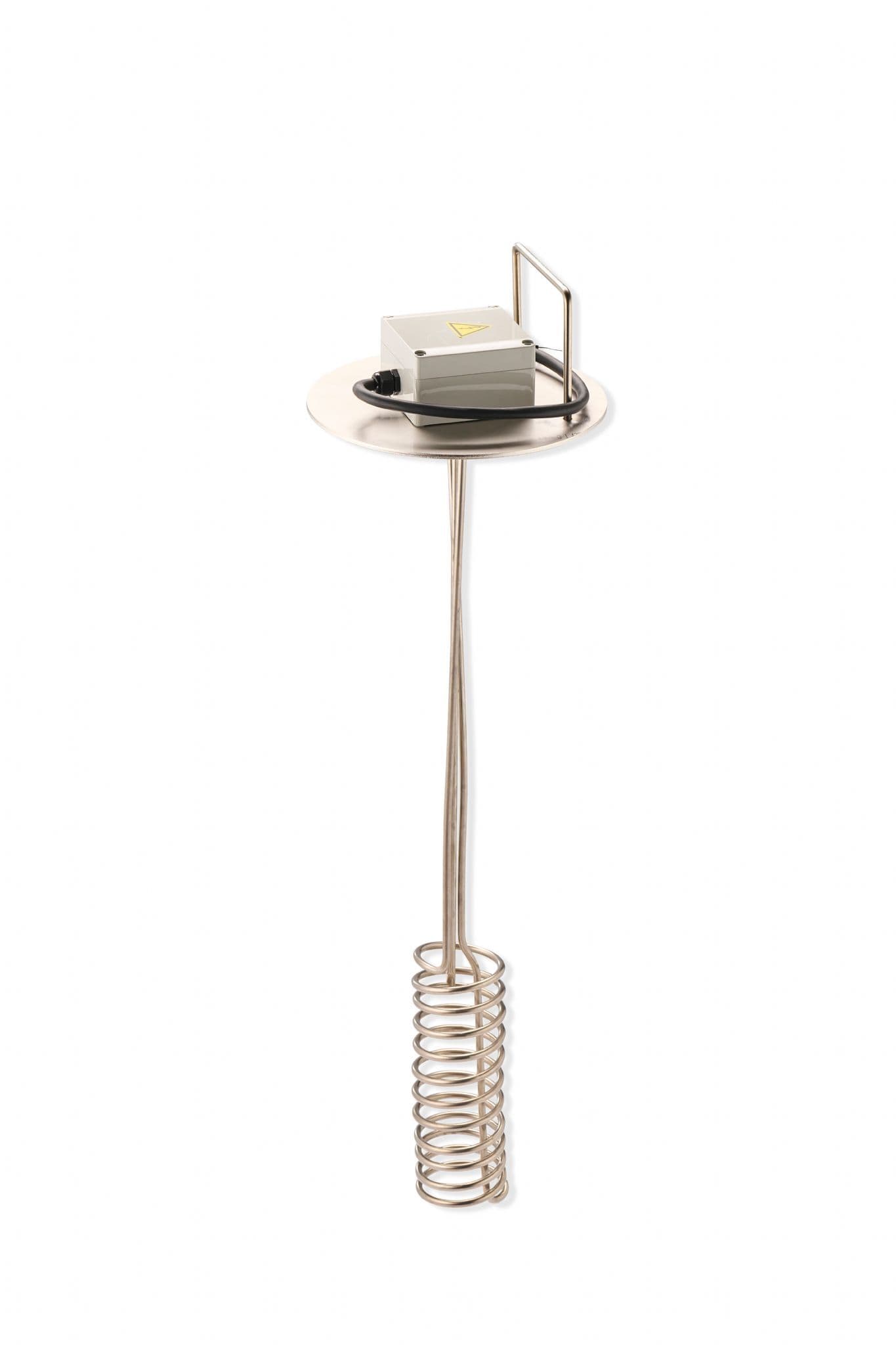

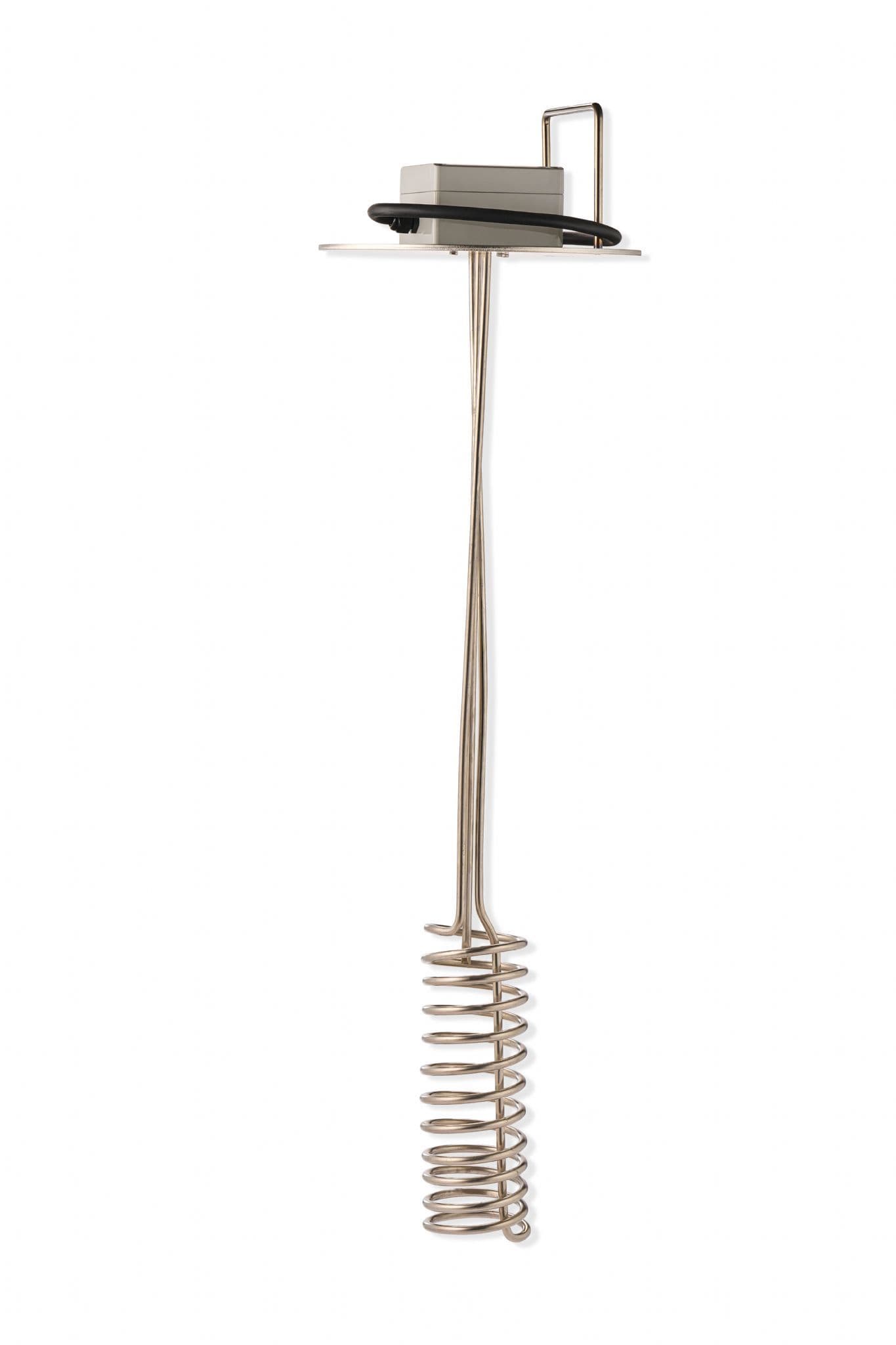

Internal Immersion IBC Heater

230 Volt Internal Immersion IBC Heater for 1000L IBC with External Digital Controller

Material - Stainless Steel

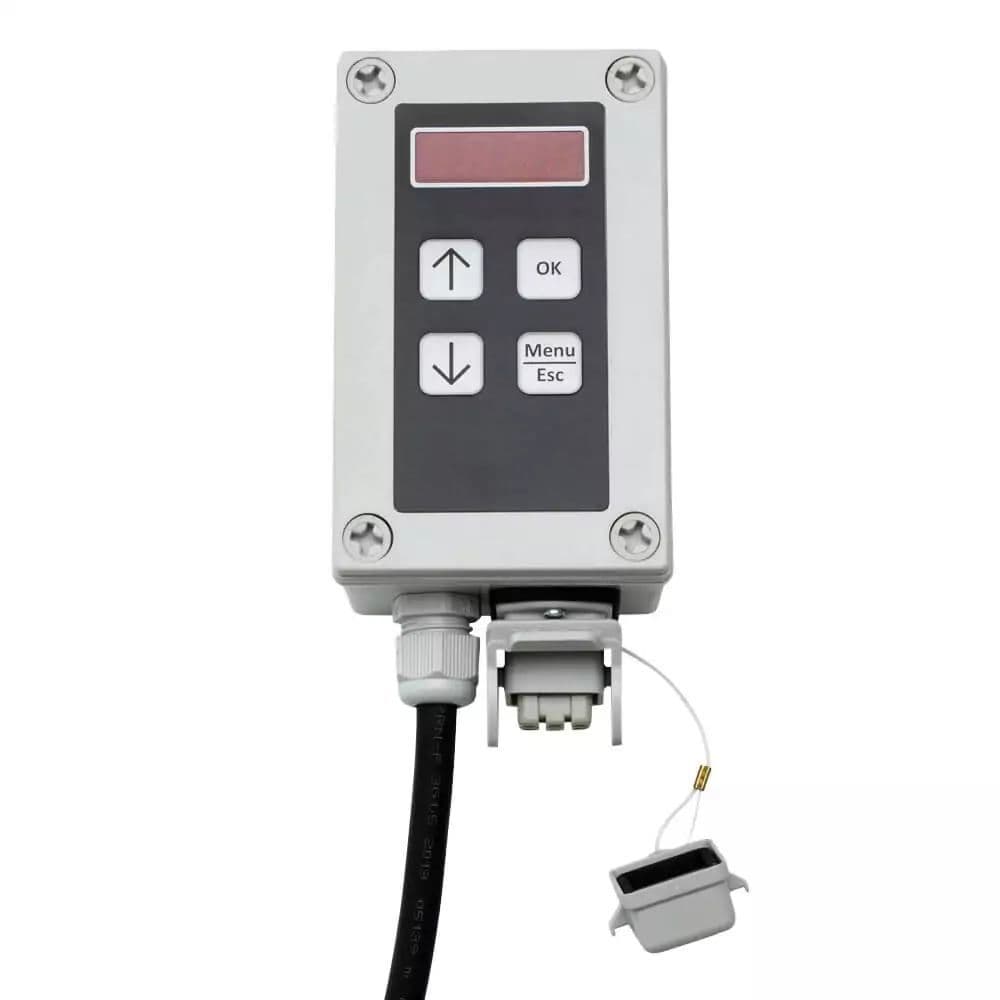

External Digital Control Unit 0-90ºC. 2000 watt

Complete with UK 3 pin Plug

Introducing our IBC Immersion Heater, the ultimate solution for efficient liquid heating in Intermediate Bulk Containers (IBCs). Designed to tackle the challenge of viscosity in substances stored in IBCs, our immersion heater provides reliable and uniform heating, ensuring optimal productivity in industrial processes.

Whether you're dealing with mild acids, alkaline mixtures, water, or oil-based products, our immersion heater delivers consistent results. It works by submerging the heater into the IBC, directly heating the liquid from within. This eliminates the issues of solidification or increased viscosity that often occur at room temperature, allowing for effortless liquid management.

Disclaimer: Please note that it is important to always review the maximum temperature recommended for the substance being heated before using the IBC Immersion Heater. The heater is designed to heat the liquid to the desired set temperature, and it reaches high temperatures during operation.

The applications of our IBC Immersion Heater are vast. It is ideal for industries such as chemical processing, pharmaceuticals, food and beverage, and oil and gas. In chemical processing, it ensures that substances maintain the required viscosity for efficient production. In pharmaceuticals, it aids in precise temperature control during formulation processes. In the food and beverage industry, it helps maintain the desired consistency of various products. Additionally, it plays a crucial role in optimizing oil and gas operations by preventing fluid thickening in storage or transportation.

Technical Specifications:

• Surface load: 2.2W/cm²
• Power: 2000W
• Supply: 230V 1-phase
• Length element: 950mm
• Diameter element: ø100mm
• Heated zone: 300mm
• Integrated PT100 sensor
• Minimum level of liquid during heating: 500mm (half full)
• Cable between heater and control unit: ~2800mm
• Digital controller: 0-90°C

This standard immersion heater is specially designed for Intermediate Bulk Containers (IBC container 1000L) and is the perfect and easy way to raise the temperature of your liquid. The stainless steel immersion heater is installed through the tank opening on the top of the IBC and used to heat water and oils but also works in mild acids and alkaline mixtures.

We prioritise both performance and durability this immersion heater for IBC is made of stainless steel tube element AISI 316L (1.4404) and is IP65 to cope with outdoor environments. The diameter of the heater fits the top opening of IBC tanks and it has an active heating zone that requires a minimum of a half filled IBC 1000 liter IBC. We have equipped our immersion heater with a fixed handle, which makes it easy to lift in and out of the tank and allows it hanging during the times when not in use. The digitally-controlled temperature setting allows for easy operation and precise control over the heating process.

Protection Type - IP65 rated (Controller IP54)

Guarantee - 12 months or 1600 hours of use.

Product will require some assembly.

Net weight - 5.45 kgs

Lead time 5- 7 working days
