IBC Connection Linking Kits

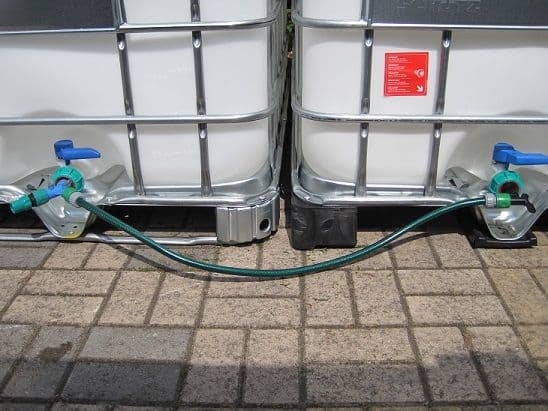

This kit will allow you to permanently connect two IBC's together. The Hose Connector Kit contains:

1 x IBC 60 mm Adaptor and 3/4 inch Tap with hoselock
1 Metre of 1/2 inch BSP Hose
1 x IBC 60 mm Adaptor 3/4 inch Two Way Tap with hoselock
3 x Hoselock Connectors that fit 1/2 inch hose.

This kit is for those that need to connect two IBC's together, this is ideal for those that need to have double the IBC's capacity but either lack the space for a larger tank, or need a cheaper alternative. The connections can be permanent, this is useful if the 2nd IBC is in a hard to reach location, and the hoselocks mean that the tanks can be easily and quickly disconnected when needed.

The Cap and Tap fittings all fit a 2 inch (60mm) IBC Buttress thread. The tap and cap fittings come with a three piece cap. This three piece cap allows you to swivel the end of the tap in any direction you require when connected to the outlet of your IBC. This is unlike one piece caps which may cause the tap to be facing upwards in the wrong direction. Because the parts can be moved into any direction all of the fittings are interchangeable. This therefore allows you to connect your IBCs in whatever direction you require.

These extensive and high quality connection kits will cater for all your needs depending on what flow you require from your IBCs.
The 25mm and the 50mm connection kit comes with a very strong reinforced hose which is suitable for inline pumps.
The 25mm reinforced hose you see is suitable for a wide range of applications.

The hose is suitable for oil/fuel delivery lines, water and certain agricultural chemicals. Manufactured from FDA food quality approved material, it is suitable for foodstuffs.

Temperature range is -15C to +60C

The adaptors, which come with a female thread have a swivel connection thus allieviating any stress and pressure the hose may put on your IBC outlet.

The adaptors fit onto a standard 60mm IBC outlet with a very coarse thread (2 or 3 threads). We do have adaptors for other outlets as well. If you are unsure if your IBC outlet is suitable, take a look at our informative YouTube clip, which should help you understand what type of IBC outlet you have:

http://www.youtube.com/user/SmithsDeanDrums
