Home > Camlocks

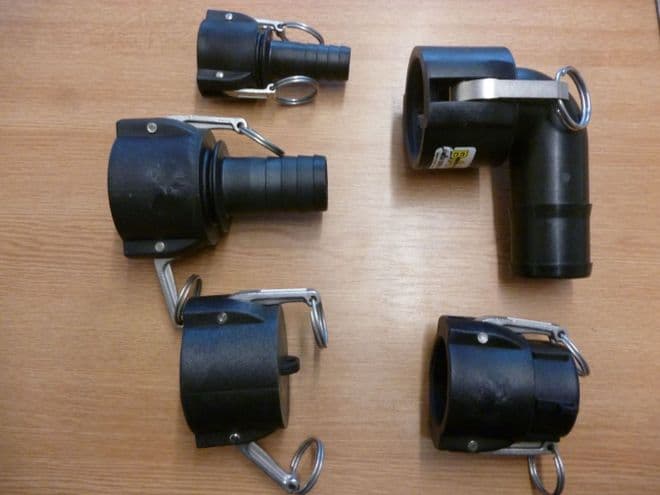

Female Camlock Fittings

Female Camlock Fittings

These fittings are female camlock parts that either end in a BSP female thread, a Hose Tail connection, a 60 mm Male Buttress IBC thread or a blank. The female camlock works in conjunction with the male camlock part. The metal arms on the camlock are clicked back to lock the female camlock over the male camlock. These fittings are generally used as a quick release system to quickly connect and discount your pipework to and from your IBC container or tank outlet.

The hose tail connections are to fit either 25, 38 or 50 mm inside diameter hose. Reinforced hoses and suction hose are generally measured via the inside diameter of the pipe.

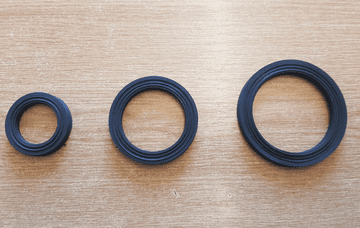

All of the fittings are made of robust black plastic with the metal handles being made out of Stainless Steel. Replacement seals and parts are also available if required. Here is a quick diagram on how to measure your Camlock fittings. Larger 3 inch or 4 inch Camlock fittings are also available. Contact us for further details.



Camlock Sizes
Nominal Size [Inch] D1 mm (") D2 mm (")
3/4 32.4 (1.28) 32.1 (1.26)
1 37.3 (1.47) 36.7 (1.44)
1 1/4 46.0 (1.81) 45.5 (1.79)
1 1/2 54.0 (2.13) 53.4 (2.10)
2 63.8 (2.51) 63.0 (2.48)
3 92.2 (3.63) 91.5 (3.60)
4 120.3 (4.74) 119.5 (4.70)
Female Camlock Connectors


Price: £13.50
